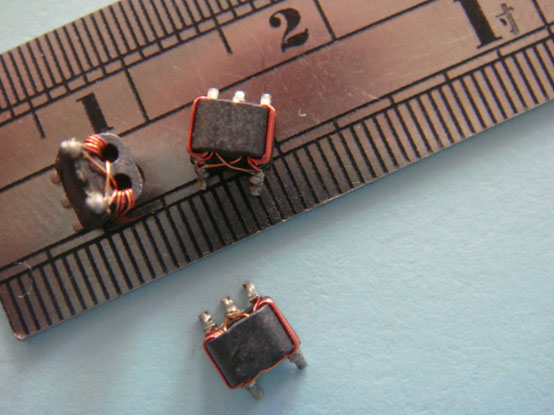

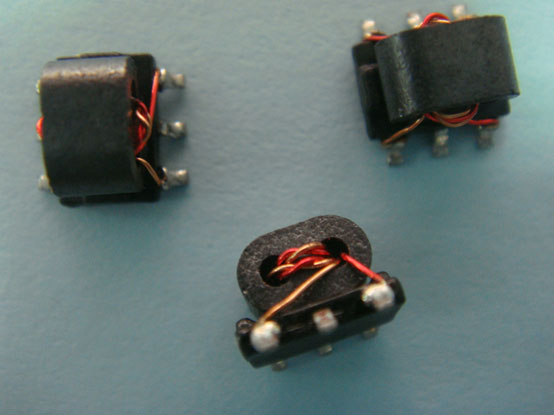

Surface Mount Balun Transformers
GS-CRBT(Balun Transformer) Series
Features
- Based terminal are treated, allows mounting “as is”on a PCB.
- Paired wire coil for high stability.
Applications
- Double Balance Mixers, Broad-Band Transformers;
- Impedance Transformers, Balun Transformers,etc.
Shapes and Dimensions
| TYPE: | DIMENSIONS: | Winding Turns | Frequency | Insertion Loss | ||||
|---|---|---|---|---|---|---|---|---|
| CRBT Series | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | |||
| 3030-1021 | 5.50 MAX | 4.50 MAX | 3.50 MAX | 1.5±0.2 | 3.0±0.2 | 1.5T | 5-900MHz | 2.0dB(max) |
| 3030-1022 | 2.5T | |||||||
| 3030-1023 | 3.5T | 3.0dB(max) | ||||||
| 3030-1024 | 4.5T | |||||||
| 3030-1025 | 5.5T | |||||||
GS-CRBT(Frequency Mixer) Series
Features
- Based terminal are treated, allows mounting “as is”on a PCB.
- Paired wire coil for high stability.
Applications
- Double Balance Mixers, Broad-Band Transformers;
- Impedance Transformers, Balun Transformers,etc.
Shapes and Dimensions
| TYPE: | DIMENSIONS: | Return Loss | Frequency | Insertion Loss | ||||
|---|---|---|---|---|---|---|---|---|
| CRBT Series | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | |||
| 3030-222R | 5.50 MAX | 4.50 MAX | 3.50 MAX | 1.5±0.2 | 3.0±0.2 | 15dB (Min) | 5-100MHz | 0.5dB(max) |
| 3030-333R | ||||||||
| 3030-444R | ||||||||
| 3030-555R | ||||||||
| 6050-222R | 6.5 MAX | 6.0 MAX | 4.6 MAX | 2.0±0.3 | 4.0±0.3 | |||
| 6050-333R | ||||||||
| 6050-444R | ||||||||
| 6050-555R | ||||||||
GS-Coupler Series
Features
- Based terminal are treated, allows mounting “as is”on a PCB.
- Paired wire coil for high stability.
Applications
The Coupler is designed for applications that require small, low cost, and highly reliable surface mount components. Applications may be found in broadband,wireless, and other commincations systems.
Shapes and Dimensions
| TYPE: | DIMENSIONS: | Return Loss | Frequency | Insertion Loss | ||||
|---|---|---|---|---|---|---|---|---|
| CRBT Series | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | |||
| 6050-6dB | 6.5 MAX | 6.0 MAX | 4.6 MAX | 2.0±0.3 | 4.0±0.3 | 6.2dB | 50-1000MHz | 3.5dB(max) |
| 6050-8dB | 8.1dB | |||||||
| 6050-10dB | 10.3dB | |||||||
| 6050-12dB | 12.2dB | |||||||
| 6050-15dB | 15.2dB | |||||||
| 6050-17dB | 17.1dB | |||||||
